Lumber and Liner termite damage

Wet corner

Wet corner

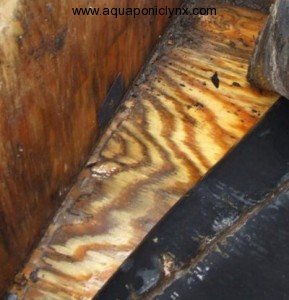

wet under liner

wet under liner

before emptying the bed

before emptying the bed

Well, I finally discovered my mistake in building with lumber and liner in Florida. Termites have caused some of my grow beds to begin leaking. Time to make a change. We will replace the middle leaking grow bed with two rubbermaid stock tanks of 100 gallons each. Each rubbermaid stock tank grow bed will sit on concrete blocks instead of needing a stand. They are deep grow beds and will provide lots of filtration for the money. I like deep grow beds for aquaponics. The 100 gallon stock tanks cost only a tiny bit more than the 50 gallon stock tanks which are almost the same footprint but would require a stand to bring them up to a nice working height. Sure the deep grow beds require more media to fill them but they provide more filtration. Filtration is all important in Aquaponics. Think of the deep grow beds as providing more space for media.

empty bed

empty bed

Keeping gravel alive

Keeping gravel alive

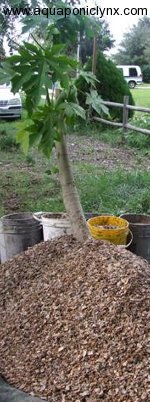

storing gravel

storing gravel

Termites ate into liner

Termites ate into liner

termite damage in wood

termite damage in wood

At the time of these pictures, there was only one grow bed leaking. We had to remove gravel from one grow bed to replace it and we had to shift another of the grow beds over to make room for two stock tanks in the middle of the aquaponics set up.

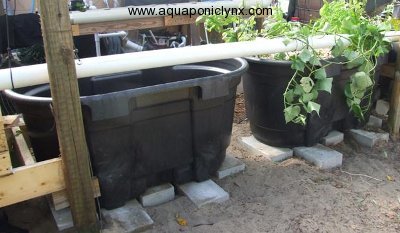

new grow bed on blocks

new grow bed on blocks

Installing rubbermaid tanks

Installing rubbermaid tanks

100 gallon Rubbermaid tanks sitting on concrete blocks are high enough up that they can drain into an aquaponics sump tank that is sunk most of the way into the ground but with a top rim up above the ground surface to keep heavy rains from washing into the tank. A 100 gallon stock tank up on concrete blocks is a comfortable working height for most people to work with the plants

2 comments to Lumber and Liner termite damage

  • Talmadge Williams

    WAS that standard plywood or pressure treated plywood and lumber? I am building one (system) in a greenhouse and was very curious

    • TCLynx

      Standard because I didn’t want water dripping down from pressure treated wood into my system. The posts were pressure treated though.
      I did have termite damage in some pressure treated boards around another bed though so I’m not entirely convinced that pressure treatment guarantees safety from bugs, the space between the wood and the liner tends to be moist and dark and a perfect nesting place for pests like ants and termites.
