Solids Filtration

In Aquaponics, Flood and Drain gravel beds make really good filters, not only for bio-filtration but also for solids filtration.

However, the water going into my water fall tank was direct from the pump out of the in ground fish tank.  I wanted to add some filtration before the water went into the waterfall tank.

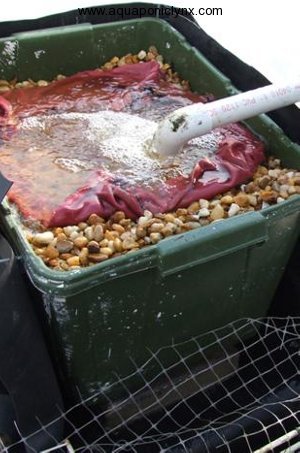

top inlet filter Feb 27 2009

top inlet filter Feb 27 2009

I had previously tried a “swirl” filter but my flow through it was too fast for most of the solids to actually settle out and I didn’t like having to dump the solids out of it every other day.  So I tried making another type of filter where the water would simply flow through a bin full of gravel and flow into the waterfall tank.  That idea didn’t work for long though and was clogged up and flowing over the top withing a few days.

Next I hooked up an upflow gravel type filter.  In this the water is pumped into the bottom of the bin and flows up through the gravel before flowing out of the bin.  This worked far better for cleaning up the solids in the water fall tank but didn’t really provide much growing space for the filtration.

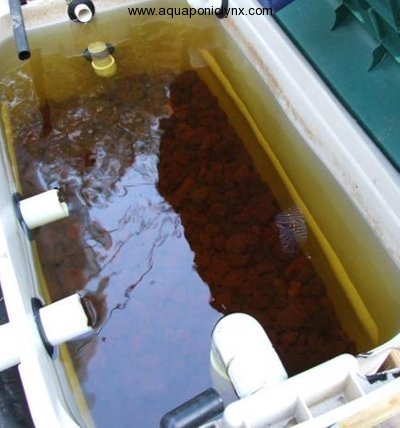

lava rock in bottom

lava rock in bottom

While the up flow filter did seem to work for the Aquaponics system I would prefer to use a regular flood and drain grow bed for most of my filtration.

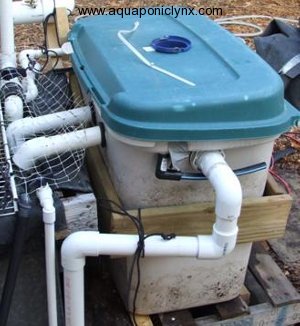

upwelling filter April 16 2009

upwelling filter April 16 2009

Any filtration where the water splashes in at the top risks clogging and overflowing as the media slimes up. I have seen this on grow beds with constant inflow in a single location. Timed flow to the beds seems to alleviate this trouble. Upflow filters don’t have the splash and overflow problem but they don’t have much aeration into the media.

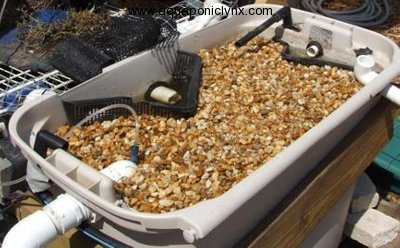

upwelling filter full with gravel

upwelling filter full with gravel

Please follow and like us:
Pin Share

2 comments to Solids Filtration

  • Jeff G

    Hi TCLynx,
    Could you bring the water into the growbed below the media surface (upflow) and use a venturi nozzle to add aeration? That way the water is never exposed to sunlight and the slime problem you mentioned should be greatly reduced. I do think you would need a higher flow rate to counteract the circumferential restriction in the venturi apparatus.

  • TCLynx

    It might be possible, however, I no longer have any filters like that running. The second bin set up is an upflow filter, just without the whole venturi idea.
