We Grow Dreams

I was up near Chicago not long ago and visited some one who has recently built an aquaponics system at We Grow Dreams.

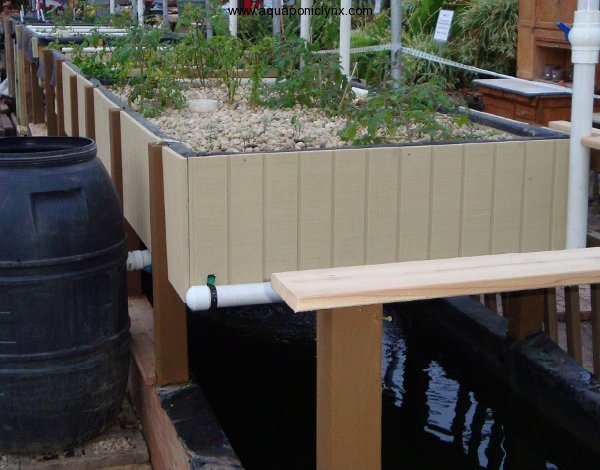

we grow dreams aquaponics grow beds

we grow dreams aquaponics grow beds

Philip Wolf Designed an Aquaponics system that has a couple of big fish tanks dug into the ground and lined with EPDM liner. A pump lifts the water from the fish tanks to 12 inch deep gravel beds above the tanks. The gravel beds drain to a large raft bed and the raft bed drains back to the fish tanks.

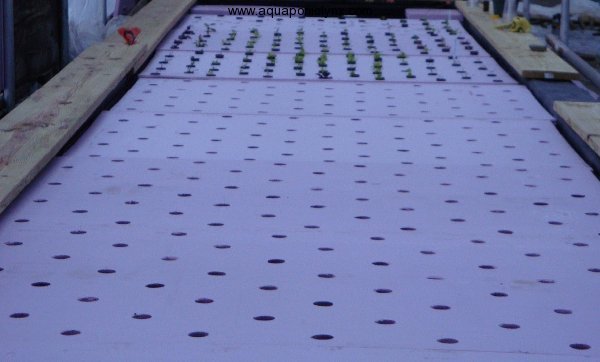

we grow dreams rafts

we grow dreams rafts

The Aquaponics system is built in a heated greenhouse of the garden center at We Grow Dreams.

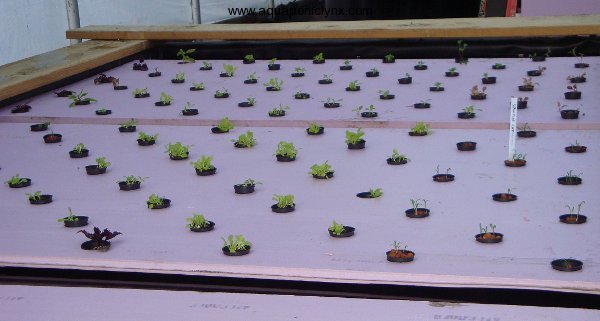

we grow dreams rafts close up

we grow dreams rafts close up

Now the system only has four 4′ by 8′ gravel beds and two 1000 gallon fish tanks. That is twice as much fish tank as gravel bed so if the system were heavily stocked, it might require some solids removal to keep it balanced long term but this should be a good opportunity to see how a hybrid gravel bed/raft system does in a real world situation.

If all else fails, I suppose the second fish tank could be counted as a sump tank and then it would be closer to a 1:1 fish tank to media bed system. (I definitely support having at least as much media bed as fish tank and my systems generally have twice as much media bed as Fish tank.)

I will say that on my Trip up to the South end of Lake Michigan, this Aquaponics system has the best design (other than needing about 4 more gravel beds of 4′ by 8′ by 12 inches deep) of the ones I toured. It is currently stocked with Perch and some Koi I think.

Please follow and like us:

2 comments to We Grow Dreams

  • John Paul

    Aloha,

    Nice system. I own an indoor garden supply company in Naperville, IL. I was wondering who you purchased your supplies from and if you would consider us as a source.

    Regards,

    John Paul
    Gardinside
    630-276-9885

    • TCLynx

      The We Grow Dreams System isn’t mine but was built By Philip Wolf working with the people at We Grow Dreams.

      I’m based in Central Florida and I get my supplies from a wide variety of places. Some things I get direct from the manufacturers like the Aquaponics Indexing Valves, Zipgrow Towers and RainSaucers that I sell. I get uniseals from a regional distributor while most other plumbing parts I get from more local distributors.
