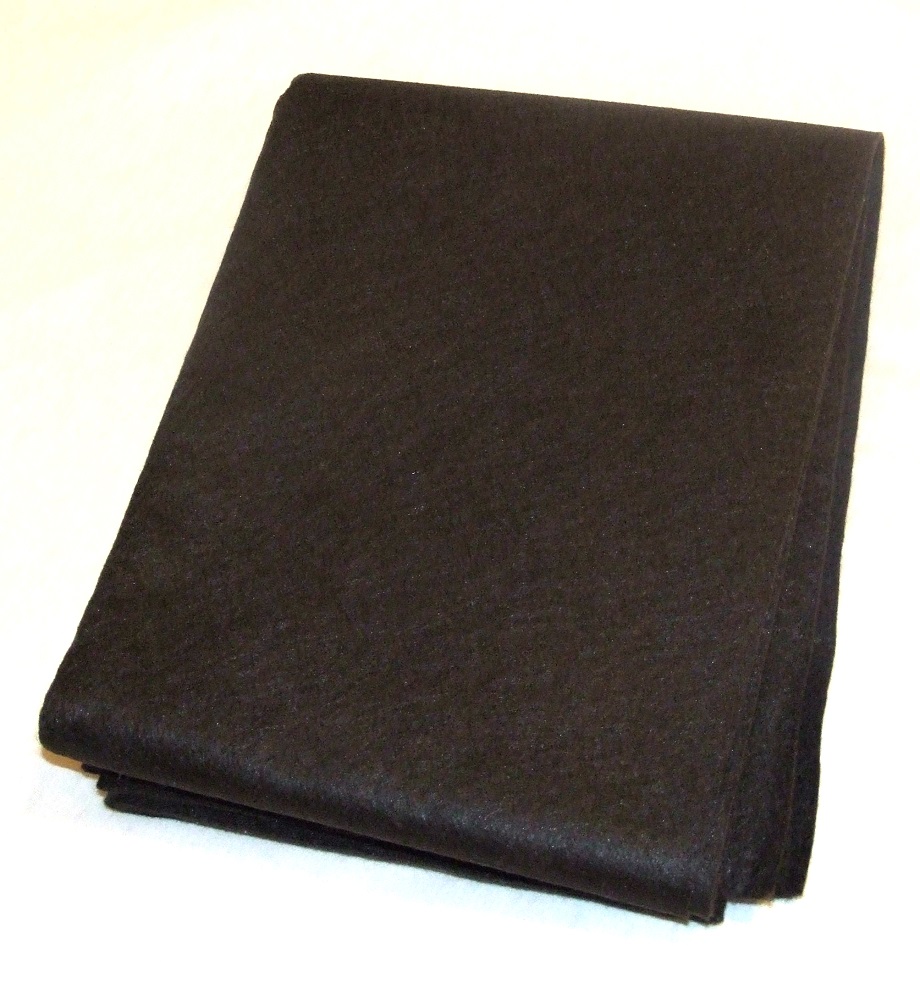

Capillary Matting

NEW, strips also available.  I have three sizes listed.  48″ by 36″ (one yard) pieces you can cut for your own needs.  48″ by 18″ (smaller size for those who just need to line a tray or planter.)  And 48″ by 3″ perfect for those who need a strip for use in a rain gutter grow system, a tower, or NFT gutter.

Capillary Matting, also known as wicking fabric or spreader mat can evenly dispense moisture to the bottoms of plant containers that rest on it. This can be a terrifically easy way to keep seed starting media properly moist while the seeds germinate and until it is time to plant them out. All one needs is a water proof surface to place the wicking fabric on and a container of water that is a little bit lower than the surface the capillary matting is on. For example, one might cover a counter top with plastic to protect it and then spread out a piece of pre-moistened wicking fabric on it, hanging one edge down into the sink. Fill the sink with water and place your seeds on it and they will stay moist as long as there is enough water in the sink to be wicked up by the fabric (the capillary matting must be touching the water.)

I don’t expect the matting to wick up much more than a few inches. I have been using it to lift water from a rain gutter up through a slit in a plant saucer sitting on top of the gutter with a fabric pot sitting on top of the matting and that has been keeping the pot moist enough that I have not been otherwise watering the pots beyond what rain falls.

Wick and top up valve in gutter

Wick and top up valve in gutter

Fabric Pots

Fabric Pots sitting on gutter

Saucer Wick

Saucer Wick, 3-4 foot length about 3 inches wide folded in half and pushed through saucer to hang into gutter

Why not just place a container of water next to the fabric on the counter top and lift an edge of the spreader mat up into it? Well gravity would cause the spreader mat to siphon the higher container dry and the capillary matting would not be able to hold all the water so it would likely leak off the plastic causing a mess and then leave the plants to dry out once the water held in the spreader mat was used up. I’ve tried this and it is amazing how well the capillary matting does at siphoning but this doesn’t really help keep the plants watered.

The spreader mat can even be used in a bath to keep plants watered during a vacation. Wet the capillary matting and then spread out on the bottom of the tub. Place plants and then set the tap so it just drips on the matting enough to keep it moist but not so much as to waist water. The spreader mat will evenly distribute the moisture without over watering the plants.

I have been making use of Capillary matting in my aquaponics systems for starting seeds and keeping small container plants watered.

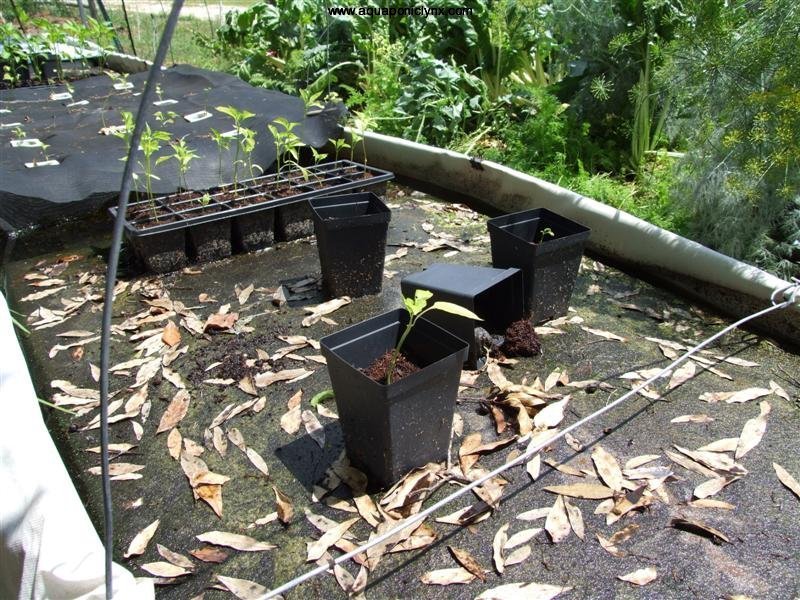

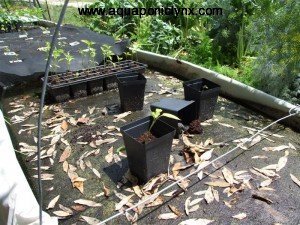

Here is a picture of a neglected raft in my aquaponics system that is keeping some small pepper plants watered.

Capillary Matting on neglected raft

Capillary Matting on neglected raft

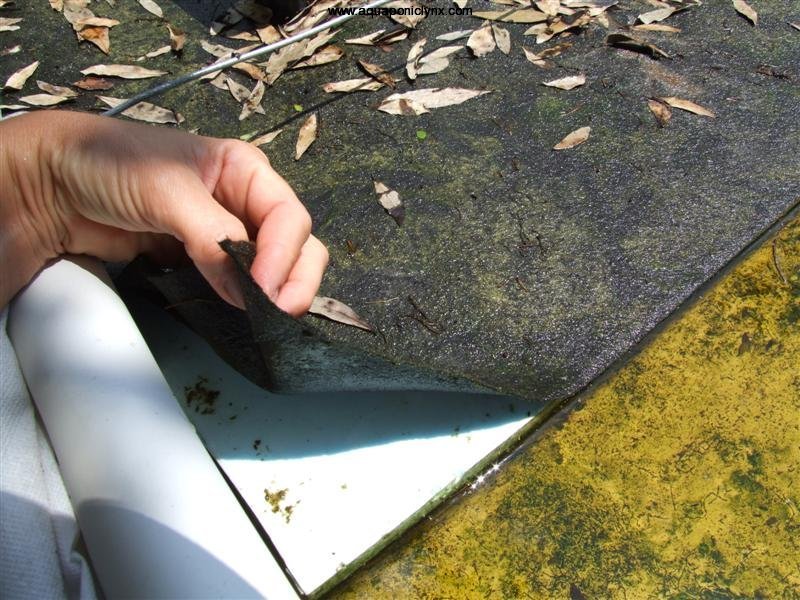

The matting simply rests on the foam raft and hangs into the water on the edge, this also happens to protect the raft from the sun.

Capillary Matting edge over foam raft

Capillary Matting edge over foam raft

I have also used the matting on a lined shelf with the edge hanging over into a trough of aquaponic water for starting seeds in peat pellets or other small seed starting media.

Capillary Matting install

Capillary Matting install

Capillary Matting install edge

Capillary Matting install edge

Capillary Matting install 2

Capillary Matting install 2

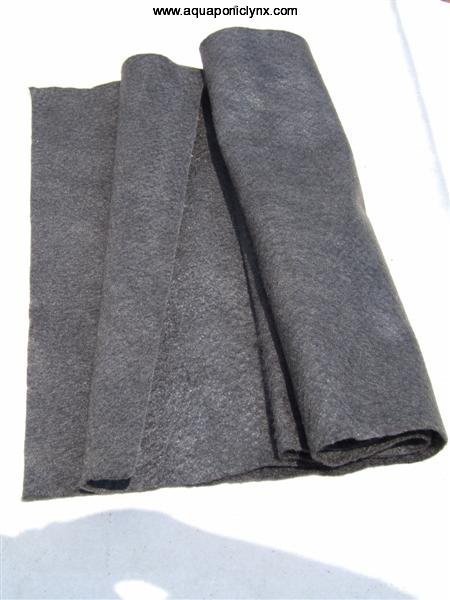

Capillary Matting

Capillary Matting

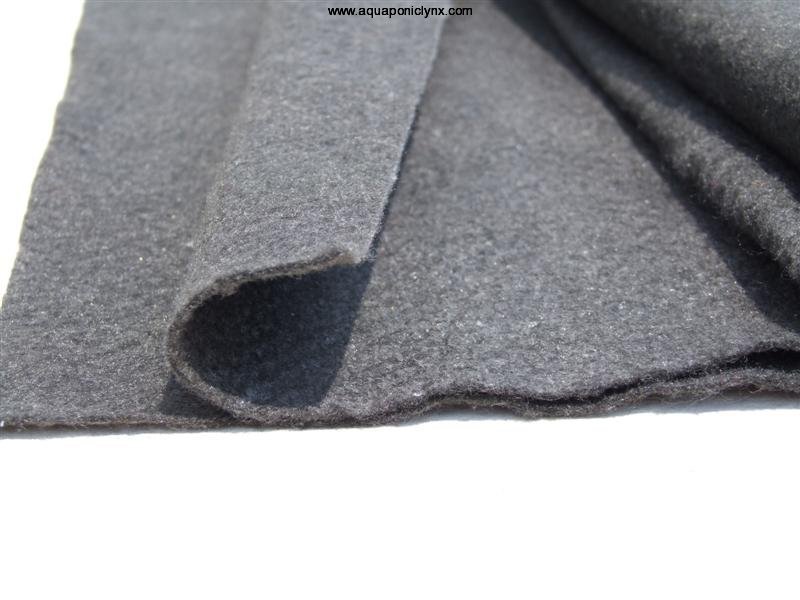

Dry capillary matting edge

Dry capillary matting edge

Capillary Matting must be soaked and completely wet/rinsed before being spread out to do it’s job and then must not be allowed to dry out or it will need to be re-soaked to work.

I can cut other sizes. I keep 4′ wide rolls in stock and can cut to length. Contact me for a quote for custom sizes.

Capillary Matting Instructions.
Thoroughly soak matting and place on water resistant surface with the edge hanging in water no more than 2 inches below the surface.

If using in an Aquaponics system, rinse the matting well before using in the system to remove residues from the matting that might otherwise cause Bubbles in the system.

If you are interested in other sizes or quantity discount let me know and I’ll see what I can do for you.

Hello! Please use this contact form to send us an email.

Sku
Matting
Description
Capillary Matting
Product Options
#OptionPriceSales TaxDownloadFile SizeStock
148" by 3"$2.50Band 1 100
248" by 18"$5.99Band 1 97
348" by 36"$11.99Band 1 73
Shipping
Shipping Rate: A
Order Capillary Matting
